-17%

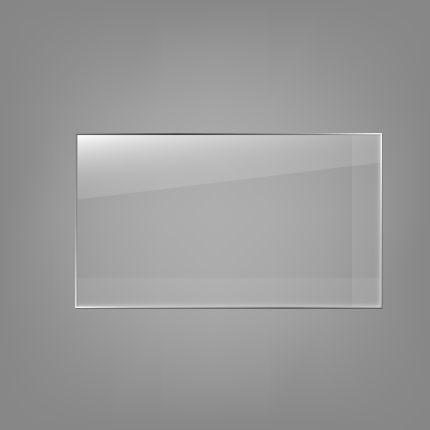

Patterned Coating Glass
$0.00
ITO COATED ON PET ( Glass Thickness : 0.175mm ), ( Resistivity : < 60 ohms/sq )- TIPZ003
Original price was: $700.00.$650.00Current price is: $650.00.
ITO COATED ON PET ( Glass Thickness : 0.175mm ), ( Resistivity : < 60 ohms/sq )- TIPZ002
Original price was: $300.00.$250.00Current price is: $250.00.
ITO-coated PET films find use in many different applications for bearing properties like high optical transmission and conductivity. They are also be used in liquid crystal devices to realign the liquid crystal cells. ITO PET films are also common components for products such as touchscreens, position sensors, electroluminescent lamps, electromagnetic shielding applications etc.
Description
- ITO-coated PET films find use in many different applications for bearing properties like high optical transmission and conductivity. They are also be used in liquid crystal devices to realign the liquid crystal cells. ITO PET films are also common components for products such as touchscreens, position sensors, electroluminescent lamps, electromagnetic shielding applications etc.
- Specified resistivity – (~15 ohms/sq), (~60 ohms/sq) & (~100 ohms/sq)
- Typical resistivity – (8-10 ohms/sq), (60-70 ohms/sq) & (90-110 ohms/sq)
- Transmittance at 550nm – ≥ 87%
- ITO film Thickness – (1400-1500 Å), (350-370 Å) & 720Å
- Heat resistance (R/R 0 ) – ≤1.3 (@130°C, 30min)
- Hear storage (R/R 0 ) – ≤1.3 (@90°C x 250hrs)
- High humidity storage (R/R 0 ) – ≤1.3 (@60°C x 250hrs, 95% RH)
- Heat cycle (R/R 0 ) – ≤1.3 (@-30°C~85°C x 50 cycle)
- Heat cycle (R/R 0 ) – ≤1.3 (@-30°C~85°C x 50 cycle)
- Surface check – Smooth, no holes, no patches and no stain
- Storage temperature – -30°C ~ +40°C
| Weight | N/A |
|---|---|
| Pack Size | 10 |
| L x W x Thickness | 200 × 100 × 0.175 mm |
| Surface Resistivity | ̴ 60 ohms/sq |
| Transmittance ( % ) | >75% |
